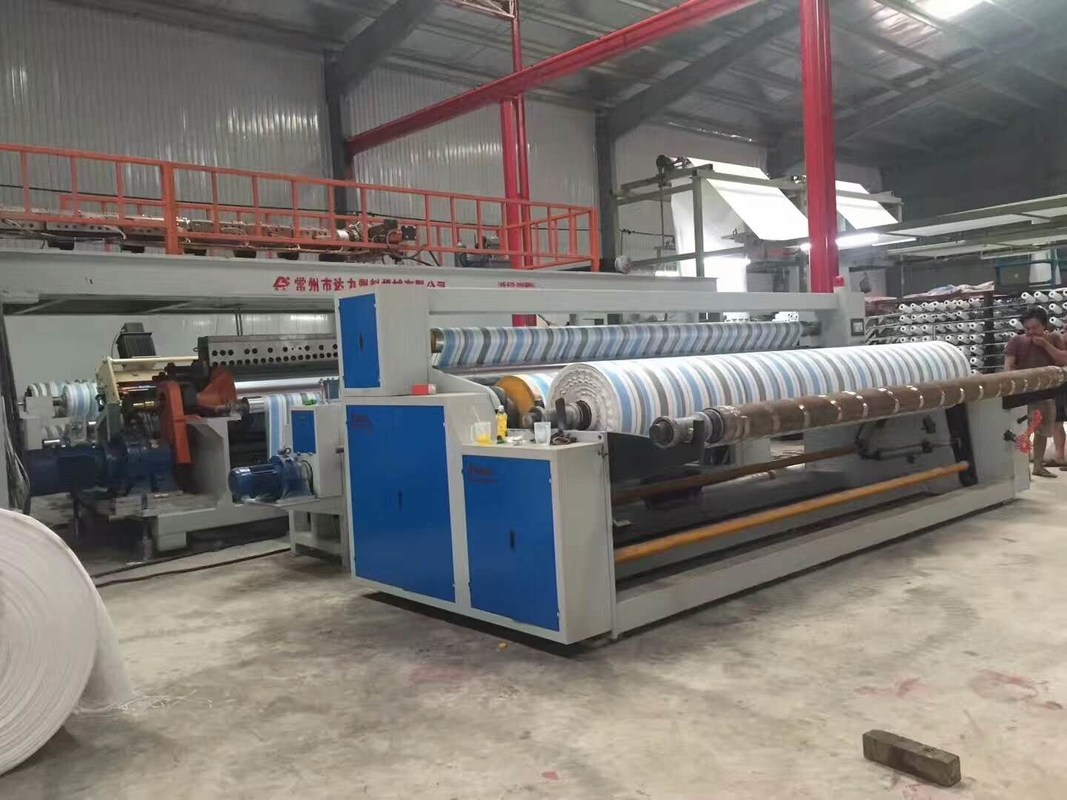

Product Details
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: DL-1400--2800 plastics laminating machine
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 9000--160000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 2-3 months
Payment Terms: T/T
Supply Ability: 5 sets per month
Name: |
PE/PP Plastics Laminating Machine |
Plastic Processed: |
LLDPE/LDPE/POE/EVA/Elastomer/Polythylene |
Application: |
Sheet/ Film |
Material: |
Granule |
Voltage: |
380V 3P/50HZ, It Can Be Customized |
Power(w): |
100--220 KW |
Screw Design: |
Single Screw Extruder |
Certification: |
CE |
Usage: |
Laminating On The Substrates(base Fabric, Soft Paper)) |
Thickness: |
0.015mm--0.1mm |
Weight: |
15T |
Dimension(l*w*h): |
12mx4.5mx3.5m |
Output: |
1.5T--4T/24 Hours |
Name: |
PE/PP Plastics Laminating Machine |
Plastic Processed: |
LLDPE/LDPE/POE/EVA/Elastomer/Polythylene |
Application: |
Sheet/ Film |
Material: |
Granule |
Voltage: |
380V 3P/50HZ, It Can Be Customized |
Power(w): |
100--220 KW |
Screw Design: |
Single Screw Extruder |
Certification: |
CE |
Usage: |
Laminating On The Substrates(base Fabric, Soft Paper)) |
Thickness: |
0.015mm--0.1mm |
Weight: |
15T |
Dimension(l*w*h): |
12mx4.5mx3.5m |
Output: |
1.5T--4T/24 Hours |
This line uses EVA ,POE as the main raw material,adopts casting process,heating the raw materials,extruding, calendering,cooling and finally winding.This production line can be specially made by customer’s requirements.This film is a new type of thermosetting hot melt film,anti-adhesive at normal temperature,easy for operation.It is fully shaped and adhesive after heating and laminating.It can make the silicon wafer, glass, backplane multi-layer material firmly bonded into the whole one. Excellent heat and humidity resistance, UV resistance, fully realize the long-term use of solar modules in outdoor requirements.
It is mainly used for encapsulation of lawn lamp cell module,courtyard lamp,solar module etc.It has environmentally protection, UV-resistance,non-yellowing and other advantages.
Material |
PE,EVA,TPR,PP,and other granule |
Working width |
1100--2800mm max |
Thickness range |
0.04-0.15mm or 0.2-1.5mm |
Screw Dia. and L/D |
Φ120---150×35:1 X1 |
T die width | 1100---2800mm |
Roller surface length | 1100--2800mm |
Winding Diameter | Φ500 |
Power supply | Three Phase 380V( ±10% )50hz, Single Phase 220V 50Hz |
Mechanical speed: | 30-100m/min |
Extrusion capacity(Maximum) | 80~180kg/h(varies with material) |
Installation power |
About 90--180kw ( actual consumption is 40%-50% of total installation power) |
Installation space |
L=12M; W=4.5m; H=3.5m
|
Prepare material → mixing → extrusion → calender → cooling → traction → count length→ winding.
Scene of assmebly workshop
