Product Details
Place of Origin: China
Brand Name: DaLi
Certification: CE

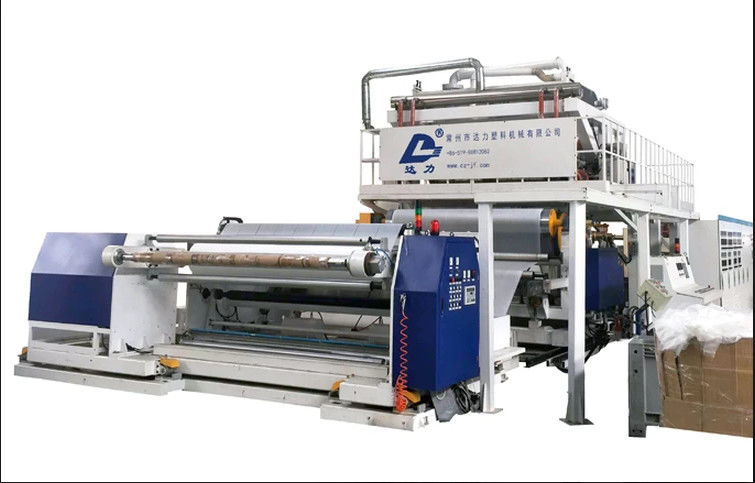

Model Number: DL-2400 cast film extrusion machine/ production line
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 100000--180000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 2-3 months
Payment Terms: T/T
Supply Ability: 5 sets per month
Name: |
Cast Film Extrusion Machine |
Plastic Processed: |
LLDPE/LDPE/POE/EVA/Elastomer/Polythylene |
Application: |
Sheet/ Film |
Material: |
Granule |
Voltage: |
380V 3P/50HZ, It Can Be Customized |
Power(w): |
180KW |
Screw Design: |
Single Screw Extruder |
Certification: |
CE |
Usage: |
PE Film/CPE/TPE Film For Disposable Hand Glove |
Thickness: |
0.015mm--0.1mm |
Weight: |
13.5T |
Dimension(l*w*h): |
12mx4.5mx3.5m |
Name: |
Cast Film Extrusion Machine |
Plastic Processed: |
LLDPE/LDPE/POE/EVA/Elastomer/Polythylene |
Application: |
Sheet/ Film |
Material: |
Granule |
Voltage: |
380V 3P/50HZ, It Can Be Customized |
Power(w): |
180KW |
Screw Design: |
Single Screw Extruder |
Certification: |
CE |
Usage: |
PE Film/CPE/TPE Film For Disposable Hand Glove |
Thickness: |
0.015mm--0.1mm |
Weight: |
13.5T |
Dimension(l*w*h): |
12mx4.5mx3.5m |
Full detailed parameters
Application of raw material | LDPE/LLDPE/POE/EVA granule |
Max allowable working width | 2100mm |
Single extruder diameter and L/D |
Φ120×35:1 X 1 |
T die width |
2400mm |
Roller surface length |
2400mm |
Winding Diameter |
Φ500mm |
Power supply |
3P,380V; 50Hz.2P,220V,50Hz. |
Mechanical speed |
30--100m/min |
Extrusion capacity(Maximum) |
100~150kg/h(varies with material) |
Installation power |
180kw ( actual consumption is 40%-50% of total installation power) |
Installation space |
L=12M; W=4.5m; H=3.5m |
