Product Details
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: DL-2100 cast film extrusion machine/ production line
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 100000--180000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 2-3 months
Payment Terms: T/T
Supply Ability: 5 sets per month
Type: |
Full Automatic Casting Film Extrusion Production Line |
Plastic Processed: |
LLDPE/LDPE/POE/EVA/Elastomer/Polythylene |
Application: |
Sheet/ Film |
Material: |
Granule |
Power(w): |
185KW |
Screw Design: |
Single Screw Extruder |
Certification: |
CE |
Type Of Winding: |
Automatic Winding Section |
Thickness: |
0.015mm--0.1mm |
Weight: |
12.5T |
Dimension(l*w*h): |
12mx4.5mx3.5m |
Liner Meachinical Speed: |
30--100m/min |
Type: |
Full Automatic Casting Film Extrusion Production Line |
Plastic Processed: |
LLDPE/LDPE/POE/EVA/Elastomer/Polythylene |
Application: |
Sheet/ Film |
Material: |
Granule |
Power(w): |
185KW |
Screw Design: |
Single Screw Extruder |
Certification: |
CE |
Type Of Winding: |
Automatic Winding Section |
Thickness: |
0.015mm--0.1mm |
Weight: |
12.5T |
Dimension(l*w*h): |
12mx4.5mx3.5m |
Liner Meachinical Speed: |
30--100m/min |
Comparing with the semi automatic casting film machine, this auotaomtaic series adopts a tensile unit ,it is capable of producing breathable waterproof film.This high-speed production line can be equipped with online slitting parts and high-speed duplex automatic winding parts.This whole machine is with high degree of integration and automation.When the producing speed is up to 100m/min or more,this machine can reduce 25% power cost comparing with normal similar machines under the same output
Material |
CPE/TPE |
Working width |
1800mm max |
Thickness range |
0.015mm to 0.1mm |
Screw Dia. and L/D |
Φ120×35:1 X 1 |
T die width | 2100mm |
Roller surface length | 2100mm |
Winding Diameter | Φ500 |
Power supply | Three Phase 380V( ±10% )50hz, Single Phase 220V 50Hz |
Mechanical speed: | 30-100m/min |
Extrusion capacity(Maximum) | 100~150kg/h(varies with material) |
Installation power |
About 160kw ( actual consumption is 40%-50% of total installation power) |
Installation space |
L=12M; W=4.5m; H=3.5m
|

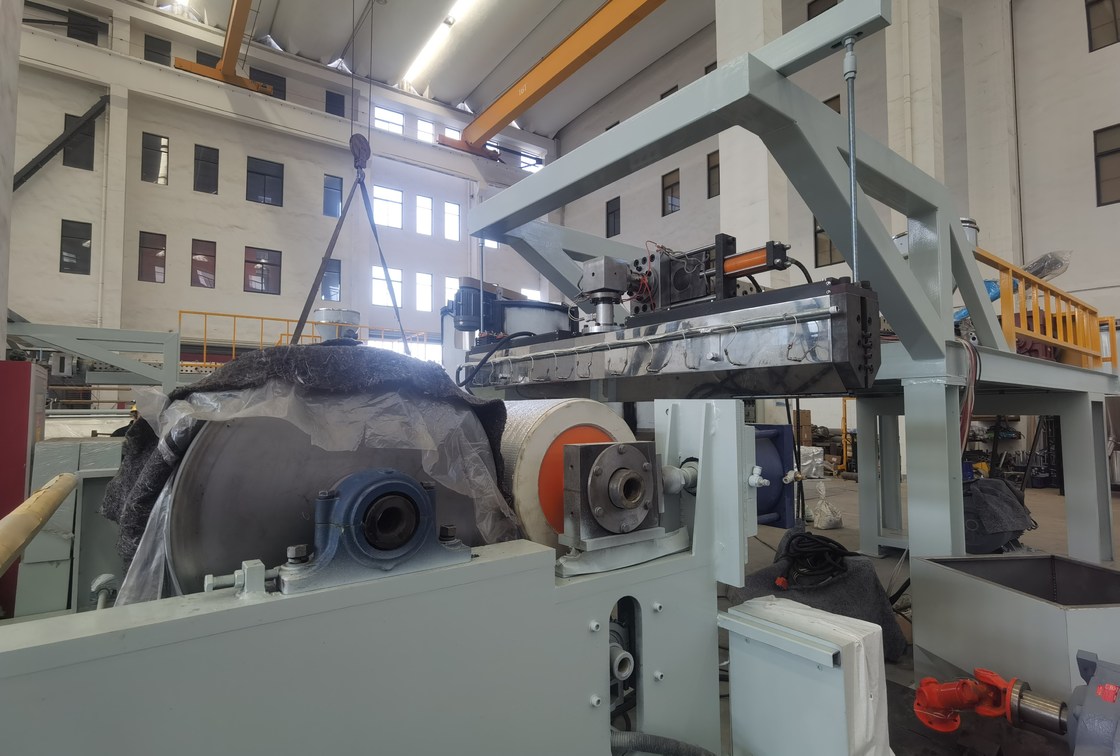

Scene of assmebly workshop
