Product Details
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: DL-2100 cast film extrusion machine/ production line
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 100000--180000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 2-3 months
Payment Terms: T/T
Supply Ability: 5 sets per month
Name: |
Multiple Layer Co-extrusion Casting Film Production Line |
Plastic Processed: |
PE/PP Plastics Granule |
Application: |
Sheet/ Film |
Voltage: |
380V 3P/50hz, Single Phase 220V, 50 Hz. Or Customized |
Power(w): |
280KW |
Screw Design: |
Multiple Extruder |
Certification: |
CE |
Usage: |
CPE/TPE Handglove Film; Plastics Package; |
Thickness: |
0.015mm--0.1mm |
Weight: |
15T |
Dimension(l*w*h): |
12mx4.5mx3.5m |
Output: |
3T--5T/24 Hours |
Name: |
Multiple Layer Co-extrusion Casting Film Production Line |
Plastic Processed: |
PE/PP Plastics Granule |
Application: |
Sheet/ Film |
Voltage: |
380V 3P/50hz, Single Phase 220V, 50 Hz. Or Customized |
Power(w): |
280KW |
Screw Design: |
Multiple Extruder |
Certification: |
CE |
Usage: |
CPE/TPE Handglove Film; Plastics Package; |
Thickness: |
0.015mm--0.1mm |
Weight: |
15T |
Dimension(l*w*h): |
12mx4.5mx3.5m |
Output: |
3T--5T/24 Hours |
The machine unit is a cast stretch film production line with high plasticizing,easy operation,long life,energy saving features and it is modified and designed based on the years’ experience on the cast equipment manufacturing and the production experience from the customers,combined with the advanced technology from oversea,the machine unit is mainly for the production of LLDPE film,LDPE film,PE film,CPE film etc..
The installation of swing system on the subsidiary machine can enhance the evenness and appearance of the film rolls which make the products more competitive.
Features of Machine
1. The machine control is integrated by PLC system with parameter setting, data transmission and feedback and alarm etc..
2. With double-station automatic winder and tension control system, winding process is stable, precise and automatic.
3. Automatic recycle system for collecting and recycle the off-cut from production on line.
4. Automatic knife, automatic cutting, automatic roll changing, safe and convenient operation.
Film Application
1. Different kinds of table cloth, gloves, shoe cover, apron, shower curtain, dust cover for clothes, rain coat, umbrella, dust cover for furniture and home textile etc..
2. Base film for sanitary napkin, baby diaper, and pet pad, disposable bed sheet and medical protective coat,plastic bags.
Material |
LDPE/LLDPE/PE/PP/CPE/TPE |
Working width |
2400mm max |
Thickness range |
0.015mm to 0.1mm |
Screw Dia. and L/D |
Φ110×35:1 X1; Φ90X35:1 X2 |
T die width | 2400mm |
Roller surface length | 2400mm |
Winding Diameter | Φ500 |
Power supply | Three Phase 380V( ±10% )50hz, Single Phase 220V 50Hz 3P, |
Mechanical speed: | 30-100m/min |
Extrusion capacity(Maximum) | 150~200kg/h(varies with material) |
Installation power |
About 260kw ( actual consumption is 40%-50% of total installation power) |
Installation space |
L=12M; W=4.5m; H=3.5m
|

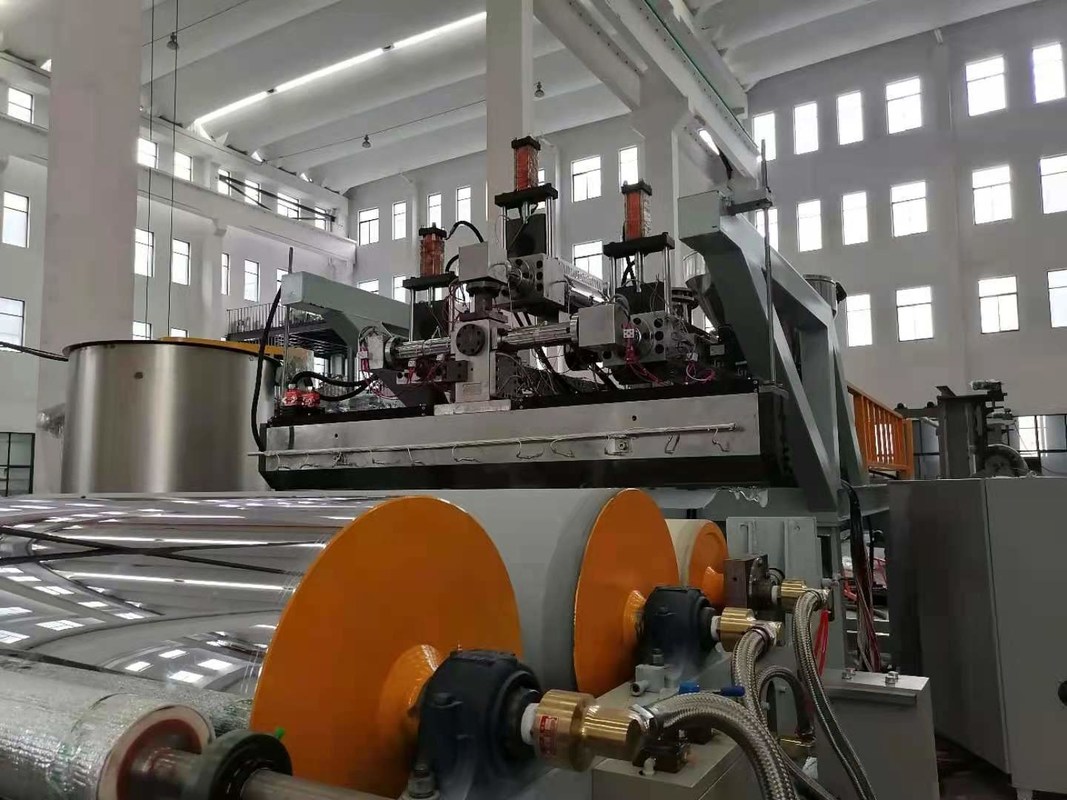

Scene of assmebly workshop
